1811 Maryland Farm Building Plans



View and print measured drawings of more than a dozen early 19th century farm outbuildings.





Most of the buildings in the Hayfields Farm complex were built by Nicholas Merriman Bosley in 1811, although some predate those. A few of the buildings were added or modified as late as the 1870s. Included in the set of drawings, by the Historic American Buildings Survey, are a stone barn and barnyard buildings, a brick horse barn, a stone coachman's house, a carriage house, a meat house, a spring house, an ice house, a wagon shed and granary, a brick privy and more.

The plan set that you can print includes floor plans, exterior elevations, building sections and construction details. Use the link below to download either 8 1/2 x 11 or larger scale prints of the nine-page plan set.

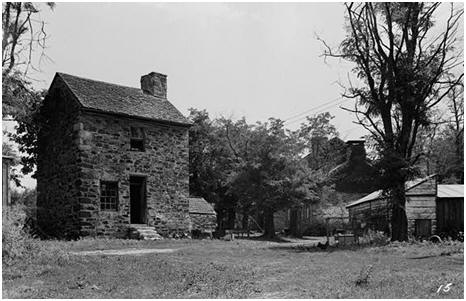

Coachman's House



Hayfields Farm Building Plan Set  These plans will print on 8 1/2x11 paper on most computer printers. Ledger and larger size prints can also be produced from the same file by using a large format printer. If you don't have one of those, a copy shop should be able to provide you with prints.



The Historic American Buildings Survey is a joint effort of the Library of Congress and the National Park Service. Read more about their efforts to preserve America's heritage by visiting their website: Built in America  To learn more about the farmstead shown here, search for it by its card number: MD0462
